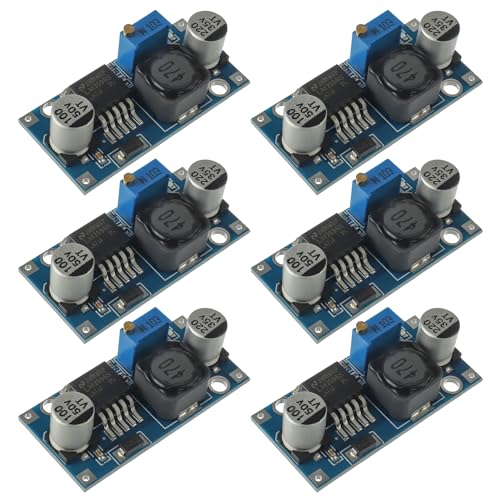

More information about LM2596S Buck Converter Buck Module DC-DC 3.2-35V to 1.25-30V 3A Voltage Adjustable Buck Converter Module(Pack of 6 Pcs)

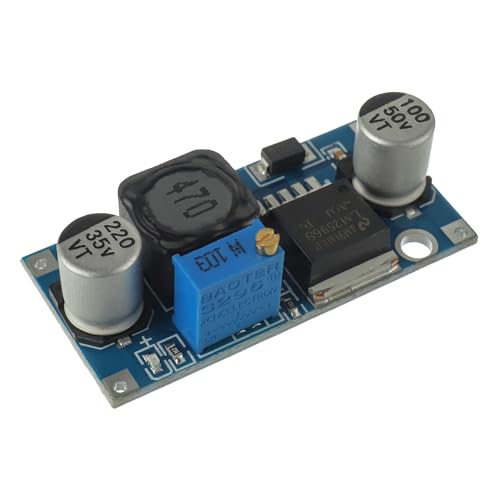

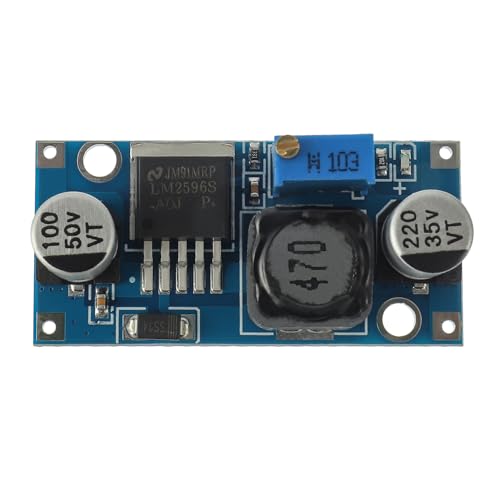

each use SANYO solid-state capacitors, 36u thick circuit board, high-Q value and high-power inductor with output LED indicator lights
Product parameters: The input voltage is DC 3.2-35V, the output voltage is 1.25V-30V (continuously adjustable, the input voltage must be 1.5V higher than the output voltage), the maximum output current is 3A, the conversion efficiency is 92% (maximum), the output ripple is less than 30mV, the switching frequency is 65KHz, and the working temperature is -45°C to 85°C.
Note: This is a voltage reduction module. The input and output connectors cannot be reversed. The input voltage must be higher than the output voltage. It is recommended to use a current of less than 2.5A for long-term work. If it exceeds 2A, a heat sink (output of over 10W) should be added. When using it for the first time, the potentiometer must be turned counterclockwise at least 10 times.

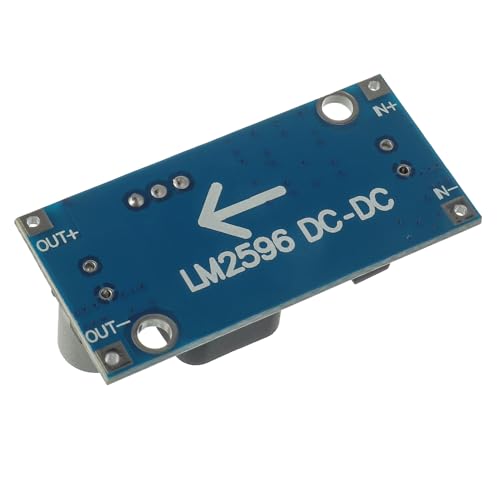

IN+input positive pole, IN - input negative pole; OUT+output positive pole, OUT - output negative pole, please note that the input and output cannot be reversed, as it may burn out if reversed!
Application: The LM2596 step-down converter can be used in fields where the input voltage is higher than the step-down output voltage, such as batteries, power transformers, vehicle mounted voltage stabilizers, and system operating voltage testing
